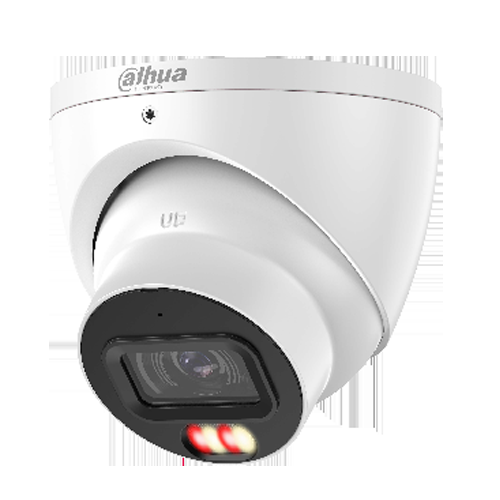

WIZSENSE SERIES IP CAMERA WHITE AI 8MP

About this product

WIZSENSE SERIES IP CAMERA WHITE AI 8MP/4K H.264/4+/5/5+ TURRET 120 WDR METAL 2.8MM FIXED LENS STARLIGHT IR+WARM LED 30M POE IP67 BUILT IN MIC SUPPORT UP TO 512GB SD 12VDC

Highlights

• SMD area can be set in warm light areas that support triggering alarms.

Specifications

Camera — Image Sensor

1/2.7" CMOS

Camera — Max. Resolution

3840 (H) × 2160 (V)

Camera — ROM

256 MB

Camera — RAM

1 GB

Camera — Scanning System

Progressive

Camera — Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Camera — Min. Illumination

0.007 [email protected] (Color, 30 IRE) 0.0007 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)

Camera — S/N Ratio

>56 dB

Camera — Illumination Distance

Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light)

Camera — Illuminator On/Off Control

Auto;Manual

Camera — Illuminator Number

2 (Multi-core (IR + warm) light)

Camera — Angle Adjustment

Pan: 0°–360° Tilt: 0°–80° Rotation: 0°–360°

Lens — Lens Type

Fixed-focal

Lens — Lens Mount

M12

Lens — Focal Length

2.8 mm; 3.6 mm

Lens — Max. Aperture

F1.4

Lens — Field of View

2.8 mm: H: 110°; V: 58°; D: 132° 3.6 mm: H: 86°; V: 49°; D: 100°

Lens — Iris Control

Fixed

Lens — Close Focus Distance

2.8 mm: 1.4 m (4.59 ft) 3.6 mm: 1.9 m (6.23 ft)

Lens — DORI Distance

Lens / Detect / Observe / Recognize / Identify

Lens — 2.8 mm

84.8 m ( 278.22 ft) / 33.9 m ( 111.22 ft) / 17.0 m ( 55.77 ft) / 8.5 m ( 27.89 ft)

Lens — 3.6 mm

98.7 m ( 323.82 ft) / 39.5 m ( 129.59 ft) / 19.7 m ( 64.63 ft) / 9.9 m ( 32.48 ft)

Intelligence — IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Intelligence — SMD

SMD 4.0

Intelligence — AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

Intelligence — AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Intelligence — Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video — Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Video — AI Coding

AI H.265; AI H.264

Video — Video Frame Rate

Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video — Stream Capability

3 streams

Video — Resolution

8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video — Bit Rate Control

VBR;CBR;ABR

Video — Video Bit Rate

H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps

Video — Day/Night

Auto(ICR)/Color/B/W

Video — BLC

Yes

Video — HLC

Yes

Video — WDR

120 dB

Video — Scene Self-adaptation (SSA)

Yes

Video — White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Video — Gain Control

Auto/Manual

Video — Noise Reduction

3D NR

Video — Motion Detection

OFF/ON (4 areas, rectangular)

Video — Region of Interest (RoI)

Yes (4 areas)

Video — Smart Illumination

Yes

Video — Smart Dual Light

Yes

Video — Defog

Yes

Video — Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Video — Mirror

Yes

Video — Privacy Masking

8 areas

Video — LDC

Yes

Audio — Built-in MIC

Yes, built-in Mic

Audio — Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm — Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection SMD; security exception

Network — Network Port

RJ-45 (10/100 Base-T)

Network — SDK and API

Yes

Network — Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Network — Interoperability

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

Network — User/Host

20 (Total bandwidth: 64 M)

Network — Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Network — Browser

IE: IE11; Chrome; Firefox

Network — Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Network — Mobile Client

iOS;Android

Network — Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification — Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power — Power Supply

12 VDC/PoE (802.3af)

Power — Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power — Power Consumption

Basic: 3.7 W (12 VDC); 5.3 W (PoE); Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)

Environment — Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Environment — Operating Humidity

≤95% (RH), non-condensing

Environment — Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Environment — Storage Humidity

≤95% (RH), non-condensing

Environment — Protection

IP67

Structure — Casing Material

Metal

Structure — Product Dimensions

105.5 mm × Φ122.0 mm (4.16" × Φ4.80")

Structure — Net Weight

0.53 kg (1.17 lb)

Structure — Gross Weight

0.71 kg (1.57 lb)

Dimensions

10.55 × 12.2 × 0 cm

Weight

0.53 kg
