Ubiquiti U7-Mesh — SKU U7-Mesh

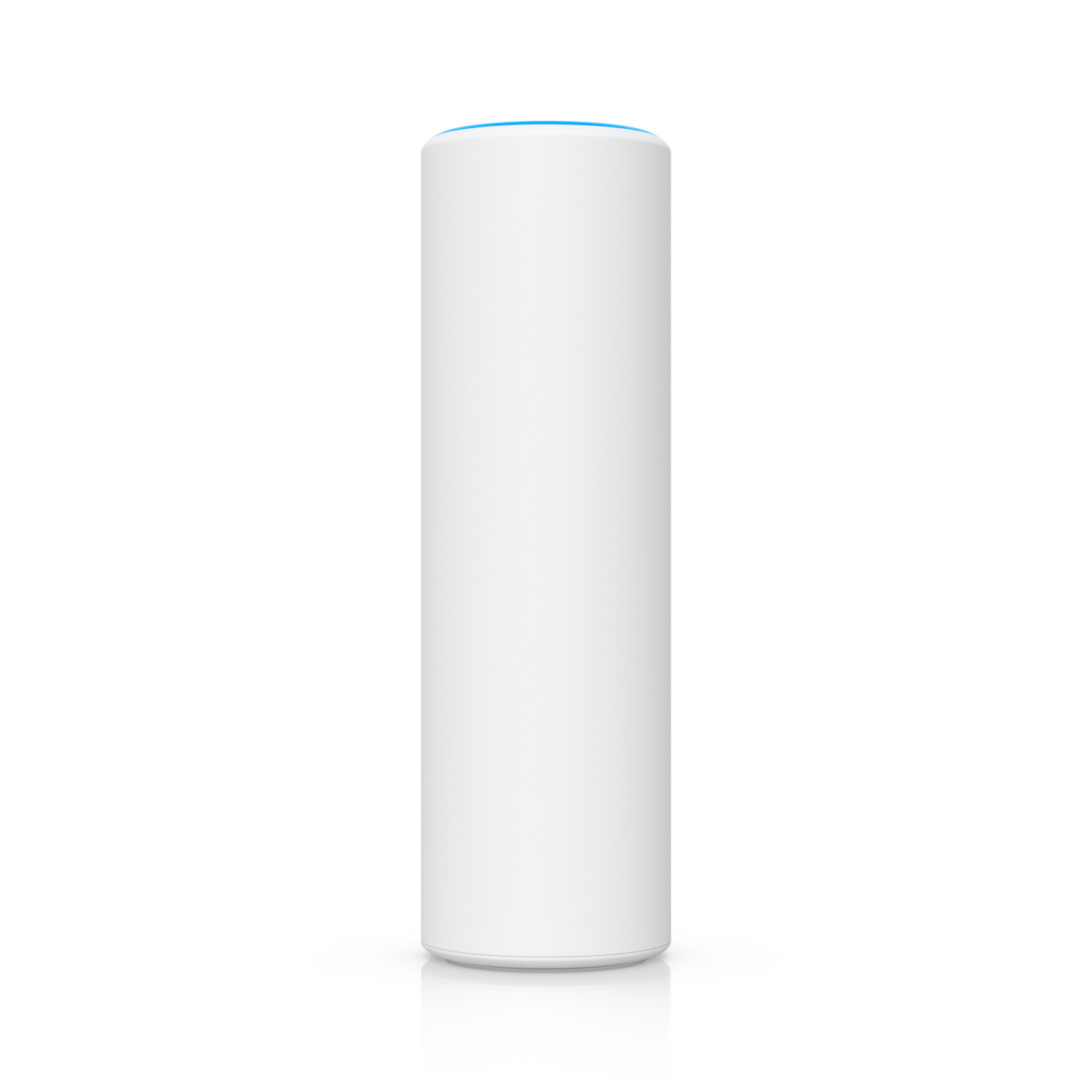

Ubiquiti U7-Mesh, Compact Indoor/Outdoor WiFi 7 AP, Integrated Long-Range Antenna System
Ubiquiti U7 Mesh
$376.15 inc GST
Available from 9 Oct
Pre-order — ships when stock arrives. The date is our distributor's estimate and can move.
Add to cart
- Delivery $16.50 Australia-wide, free on orders over $330.00.
- Free pickup from Bendigo, VIC.
About this product
Compact indoor/outdoor WiFi 7 access point with an integrated long-range antenna system. Dual-band (5 GHz and 2.4 GHz) with 4 spatial streams, a 2.5 GbE uplink and PoE power, covering up to 140 m² and 200+ connected devices. Wall, pole and table-stand mounts are included, and it is IPX6 weatherproof when installed with the outdoor mount.
Highlights
- WiFi 7
- 4 spatial streams
- 140 m² (1,500 ft²) coverage
- 200+ connected devices
- Integrated long-range antenna system — 5 GHz omnidirectional 6 dBi, directional 10 dBi
- 2.5 GbE uplink
- Powered using PoE (PoE adapter included)
- Wall, pole and table-stand mounts included
- IPX6 weatherproof when installed with the outdoor mount
- Wireless meshing
Specifications
- Dimensions
- ⌀48.5 x 159.5 mm (⌀1.9 x 6.3")
- WiFi Standard
- WiFi 7
- Spatial Streams
- 4
- Coverage Area
- 140 m² (1,500 ft²)
- Max. Client Count
- 200+
- Uplink
- 2.5 GbE (Cables with shorter boots are recommended)
- Mounting
- Wall, Pole, Table stand (Mounts included)
- Weatherproofing
- IPX6 (Installed with the outdoor mount)
- Power Method
- PoE
- MIMO — 5 GHz
- 2 x 2 (DL/UL MU-MIMO)
- MIMO — 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate — 5 GHz
- 4.3 Gbps (BW240) (Depends on regulatory region)
- Max. Data Rate — 2.4 GHz
- 688 Mbps (BW40)
- Antenna Gain — 5 GHz
- Omnidirectional: 6 dBi; Directional: 10 dBi
- Antenna Gain — 2.4 GHz
- 3 dBi
- Max. TX Power — 5 GHz
- 24 dBm
- Max. TX Power — 2.4 GHz
- 23 dBm
- Max. BSSIDs
- 8 per Radio
- Supported Data Rates — 802.11be (WiFi 7)
- 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- Supported Data Rates — 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Supported Data Rates — 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Supported Data Rates — 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Wireless Meshing
- Yes
- Band Steering
- Yes
- 802.11v BSS Transition Management
- Yes
- 802.11r Fast Roaming
- Yes
- 802.11k Radio Resource Management (RRM)
- Yes
- Advanced Radio Management
- Yes
- Passpoint (Hotspot 2.0)
- Yes
- Captive Hotspot Portal — Custom Branding Landing Page
- Yes
- Captive Hotspot Portal — Voucher Authentication
- Yes
- Captive Hotspot Portal — Payment-Based Authentication
- Yes
- Captive Hotspot Portal — External Portal Server Support
- Yes
- Captive Hotspot Portal — Password Authentication
- Yes
- Captive Hotspot Portal — Guest Network Isolation
- Yes
- Private Pre-Shared Key (PPSK)
- Yes
- WiFi Speed Limiting
- Yes
- Client Device Isolation
- Yes
- WiFi Schedules
- Yes
- RADIUS over TLS (RadSec)
- Yes
- Dynamic RADIUS-assigned VLAN
- Yes
- Max. Power Consumption
- 13W
- Includes PoE Adapter
- Yes
- Supported Voltage Range
- 42.5–57V DC
- Networking Interface
- (1) 2.5 GbE RJ45 port
- Weight
- 313 g (11 oz)
- Management
- Ethernet
- Enclosure Material
- UV-stabilized polycarbonate
- Mount Material
- UV-stabilized polycarbonate
- LEDs — System
- R/G/B/W
- Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- Ambient Operating Temperature
- -30 to 60° C (-22 to 140° F)
- Ambient Operating Humidity
- 5 to 95% noncondensing
- NDAA Compliant
- Yes
- Certifications
- CE, FCC, IC
- Application Requirements — UniFi Network
- Version 10.1.85 and later
- Application Requirements — Mobile App
- UniFi iOS™: Version 10.32.1 and later Android™: Version 10.35.1 and later
