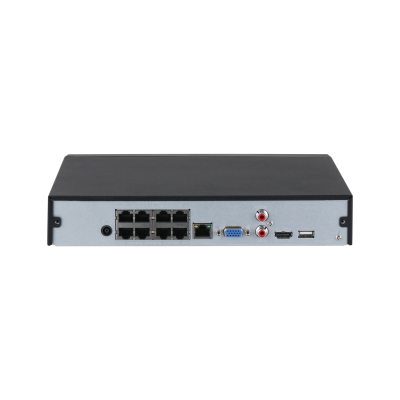

DAHUA WIZSENSE 8CH AI NVR

About this product

DAHUA WIZSENSE 8CH BLACK AI NVR 8x POE UPTO 16MP H.264/4+/5/5+/ MJPEG 1xNIC 180Mbps INPUT 1CH@16MP DECODING METAL 1xSATA HDD PORT UP TO 16TB EACH 1x HDMI/ 1x VGA 1x AUDIO IN 1x AUDIO OUT 1x FRONT/ 1x REAR USB PORT 53VDC

Highlights

• Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
• Max. 256 Mbps incoming/recording/outgoing bandwidth.
• Max. decoding capability: 16 × 1080p@30 fps or 4 × 8 MP@30 fps.
• Supports IP cameras with a resolution up to 16 MP.
• AI by Recorder supports 1-channel face detection and recognition, 2-channel perimeter protection, up to 10 face databases and 20,000 face images, 4-channel SMD.
• AI by Camera supports face detection and recognition, perimeter protection, SMD, people counting, stereo analysis, heat map.
• Supports EPTZ, and one-click arming and disarming.

Specifications

System — Main Processor

Industrial-grade processor

System — Operating System

Embedded Linux

System — Operating Interface

Web, Local GUI

AI — AI by Recorder

Face detection; face recognition; perimeter protection; and SMD

AI — AI by Camera

Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map

Perimeter Protection — Perimeter Performance AI by Recorder (Number of Channels)

2 channels, 10 IVS rules for each channel

Perimeter Protection — Perimeter Performance of AI by Camera (Number of Channels)

All channels (8 targets/s)

Face Detection — Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection — Face Detection Performance of AI by Recorder (Number of Channels)

1 channel (up to 12 face images/s each channel)

Face Detection — Face Detection Performance of AI by Camera (Number of Channels)

All channels (8 targets/s)

Face Recognition — Face Database Capacity

Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

Face Recognition — Face Recognition Performance of AI by Recorder (Number of Channels)

8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s

Face Recognition — Face Recognition Performance of AI by Camera (Number of Channels)

All channels (8 targets/s)

SMD Plus — SMD Plus by Recorder

4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus — SMD by Camera

All channels (16 targets/s)

Audio and Video — Access Channel

8 channels

Audio and Video — Network Bandwidth

AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing

Audio and Video — Resolution

16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF

Audio and Video — Decoding Capability

AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps

Audio and Video — Video Output

1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Audio and Video — Multi-screen Display

1st Screen: 1/4/8/9 2nd Screen: 1/4/8/9

Audio and Video — Third-party Camera Access

Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, ONVIF, Canon

Compression Standard — Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Compression Standard — Audio Compression

G.711a; G.711u; PCM; G726

Network — Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera, DVR, NVS, etc.); P2P; Auto Registration

Network — Mobile Phone Access

iOS; Android

Network — Interoperability

ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Network — Browser

Chrome; IE9 and later; Firefox

Recording Playback — Multi-channel Playback

Up to 8 channels

Recording Playback — Record Mode

General, motion detection; intelligent; alarm

Recording Playback — Backup Method

USB device and network

Recording Playback — Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback

Alarm — General Alarm

Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm

Alarm — Anomaly Alarm

Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline; audio detection

Alarm — Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map

Alarm — Alarm Linkage

Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email

Port — Audio Input

1-channel RCA

Port — Audio Output

1-channel RCA

Port — Disk Interface

1 SATA port, up to 20 TB.The maximum HDD capacity varies with environment temperature.

Port — USB

2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

Port — HDMI

1

Port — VGA

1

Port — Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

Port — PoE Port

8 ports, 10/100 Mbps, IEEE 802.3 af/at

General — Power Supply

53 VDC, 1.812 A

General — Power Consumption

< 10 W (without HDD) Total maximum output power of PoE is 78 W, the maximum output power of a single port is 25.5 W

General — Net Weight

0.92 kg (2.03 lb)

General — Gross Weight

2.05 kg (4.52 lb)

General — Product Dimensions

260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × D × H)

General — Packaging Dimensions

372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H)

General — Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

General — Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

General — Operating Humidity

10%–93% (RH), non-condensing

General — Certifications

FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

Dimensions

26 × 23.27 × 4.76 cm

Weight

0.92 kg
