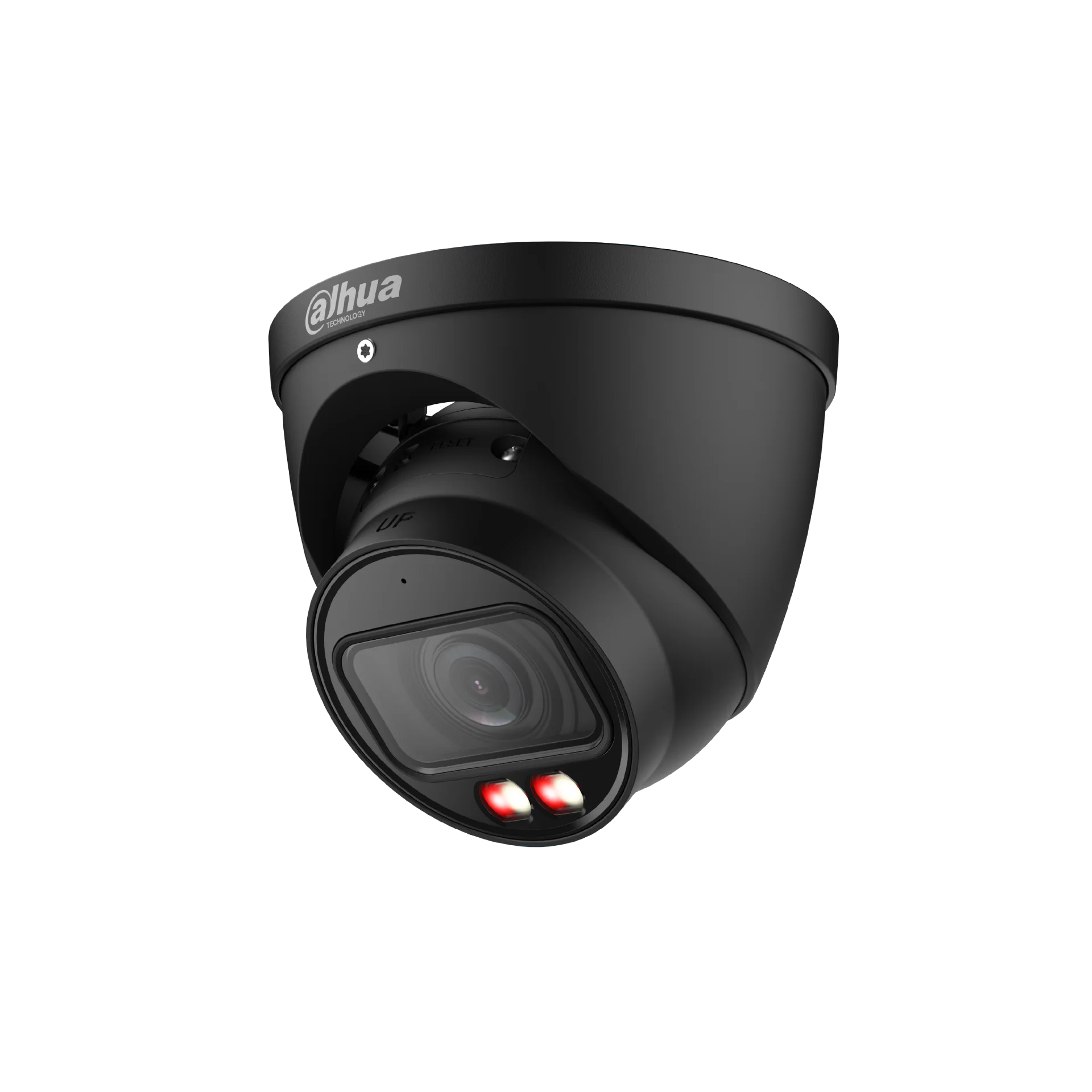

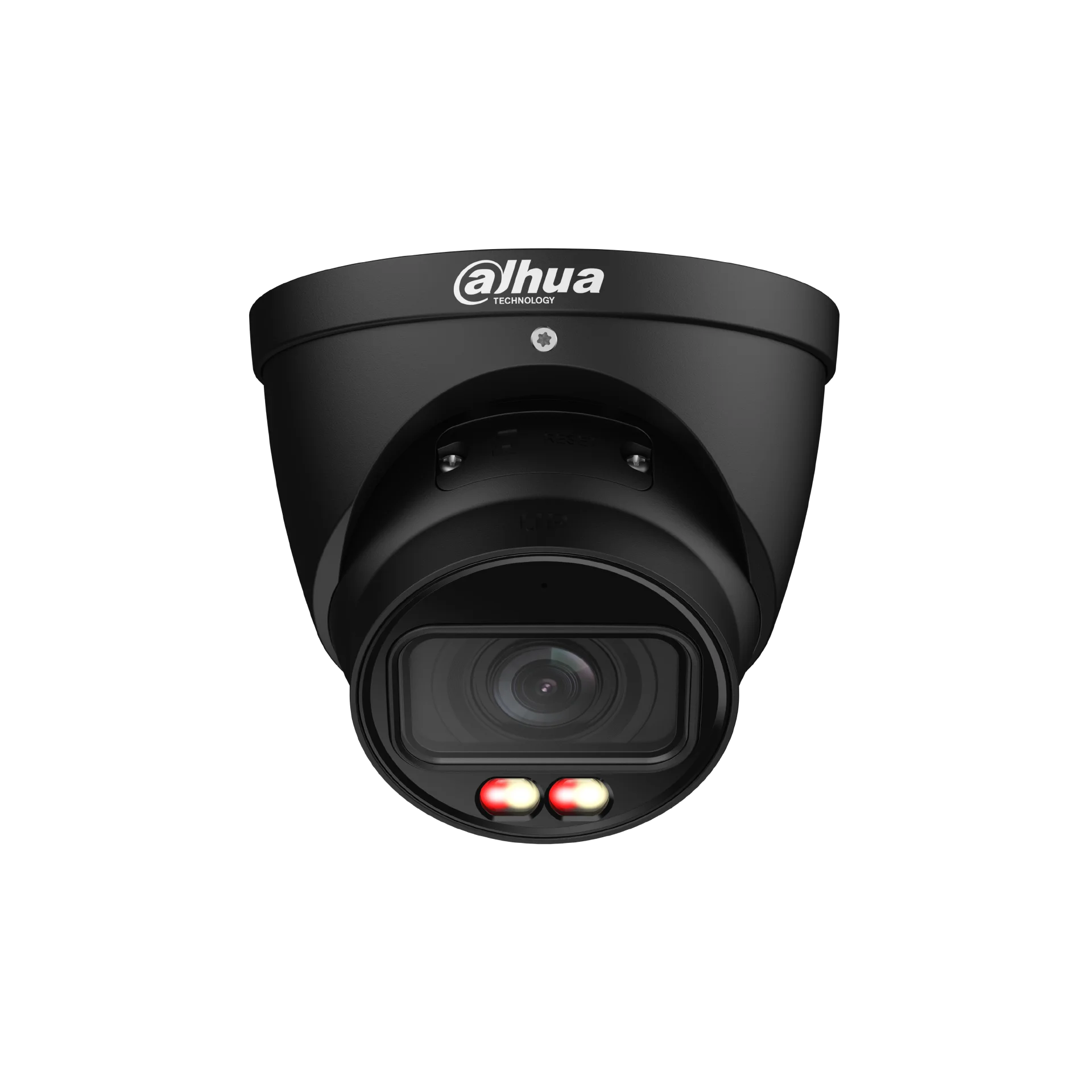

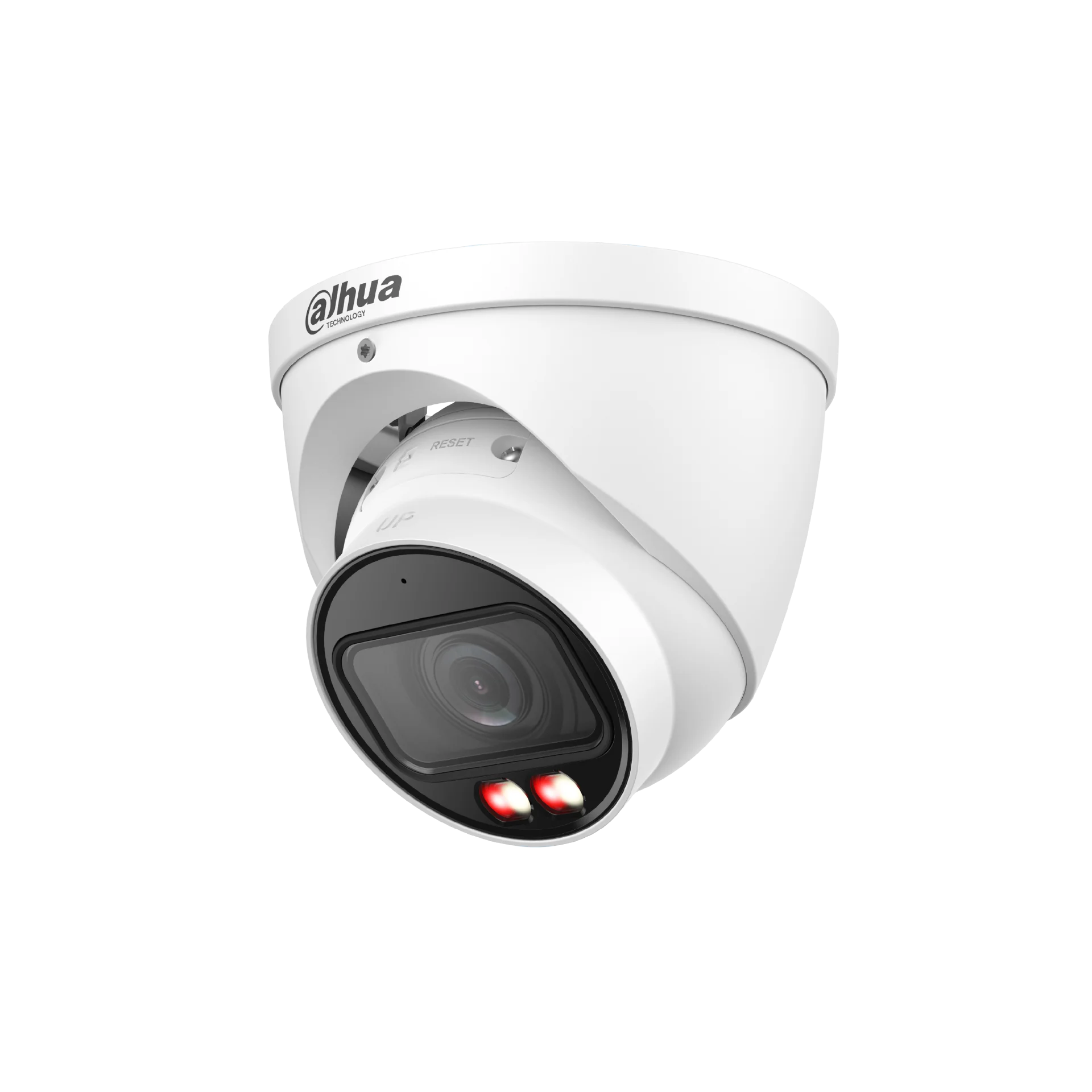

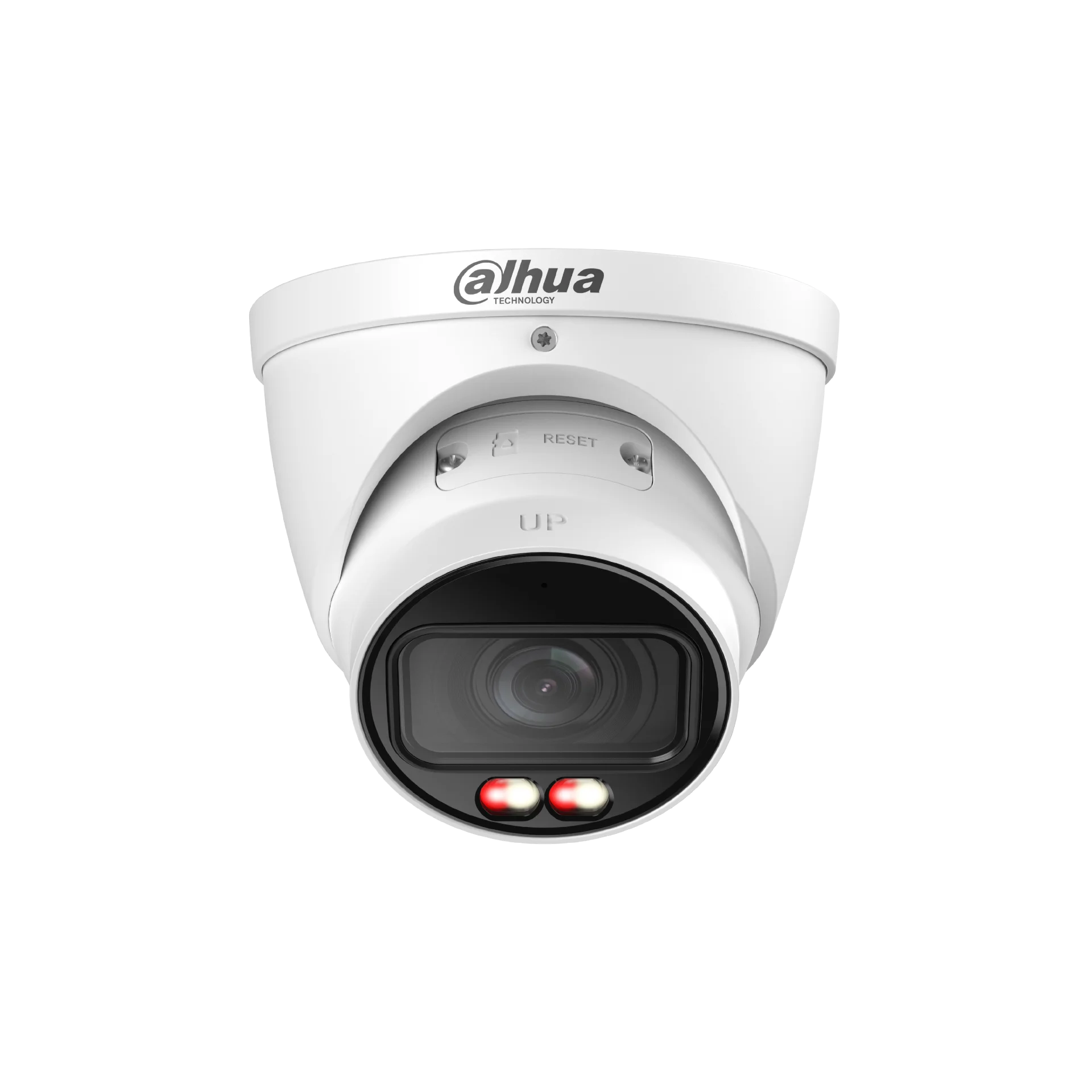

Dahua IPC-HDW3867T-ZS-IL-ANZ — SKU IPC-HDW3867T-ZS-IL-ANZ
Dahua 8MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera
8MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera
Log in to see price — free account, takes a minute
In stock (Melbourne)
Add to cart
- Delivery $16.50 Australia-wide, free on orders over $330.00.
- Free pickup from Bendigo, VIC.
About this product
• 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 8 MP (3840 × 2160)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 40 m.
• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Supports max. 512 G Micro SD card; built-in Mic.
• 12 VDC/PoE power supply.
• IP67 protection.
• SMD 4.0.
• Supports AI SSA.
• SMD area can be set in warm light areas that support triggering alarms.
Highlights
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 40 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 512 G Micro SD card; built-in Mic.
- 12 VDC/PoE power supply.
- IP67 protection.
- SMD 4.0.
- Supports AI SSA.
- SMD area can be set in warm light areas that support triggering alarms.
Specifications
- Camera — Image Sensor
- 1/2.7" CMOS
- Camera — Max. Resolution
- 3840 (H) × 2160 (V)
- Camera — ROM
- 256 MB
- Camera — RAM
- 1 GB
- Camera — Scanning System
- Progressive
- Camera — Electronic Shutter Speed
- Auto/Manual 1/3 s–1/100,000 s
- Camera — Min. Illumination
- 0.007 [email protected] (Color, 30 IRE) 0.0007 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
- Camera — S/N Ratio
- >56 dB
- Camera — Illumination Distance
- Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light)
- Camera — Illuminator On/Off Control
- Auto; Manual
- Camera — Illuminator Number
- 4 (Multi-core (IR + warm) light)
- Camera — Angle Adjustment
- Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
- Lens — Lens Type
- Motorized vari-focal
- Lens — Lens Mount
- φ14
- Lens — Focal Length
- 2.7 mm-13.5 mm
- Lens — Max. Aperture
- F1.4
- Lens — Field of View
- H: 114°–32°; V: 58°–17°; D: 138°–36°
- Lens — Iris Control
- Fixed
- Lens — Close Focus Distance
- 0.1 m (0.33 ft)
- Lens — DORI Distance
- Lens / Detect / Observe / Recognize / Identify
- Lens — W
- 85.3 m (279.86 ft) / 34.0 m (111.55 ft) / 17.1 m (56.10 ft) / 8.5 m (27.89 ft)
- Lens — T
- 280.0 m (918.64 ft) / 112.0 m (367.45 ft) / 56.0 m (183.73 ft) / 28.0 m (91.86 ft)
- Intelligence — IVS (Perimeter Protection)
- Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
- Intelligence — SMD
- SMD 4.0
- Intelligence — AcuPick
- Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
- Intelligence — AI SSA
- Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions
- Intelligence — Smart Search
- Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Video — Video Compression
- H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
- Video — Smart Codec
- Smart H.265+; Smart H.264+
- Video — AI Coding
- AI H.265; AI H.264
- Video — Video Frame Rate
- Main stream: 3840 × 2160@(1 fps–25/30 fps) Sub stream: 1920 × 1080@(1 fps–25/30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Video — Stream Capability
- 3 streams
- Video — Resolution
- 8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
- Video — Bit Rate Control
- VBR;CBR;ABR
- Video — Video Bit Rate
- H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps
- Video — Day/Night
- Auto (ICR)/Color/B/W
- Video — BLC
- Yes
- Video — HLC
- Yes
- Video — WDR
- 120 dB
- Video — Scene Self-adaptation (SSA)
- Yes
- Video — White Balance
- Auto; natural; street lamp; outdoor; manual; regional custom
- Video — Gain Control
- Auto
- Video — Noise Reduction
- 3D NR
- Video — Motion Detection
- OFF/ON (4 areas, rectangular)
- Video — Image Stabilization
- Electronic Image Stabilization (EIS)
- Video — Region of Interest (RoI)
- Yes (4 areas)
- Video — Smart Illumination
- Yes
- Video — Smart Dual Light
- Yes
- Video — Defog
- Yes
- Video — AFSA
- Yes
- Video — Image Rotation
- 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resoluton and lower)
- Video — Mirror
- Yes
- Video — Privacy Masking
- 8 areas
- Audio — Built-in Mic
- Yes, built-in Mic
- Audio — Audio Compression
- G.711a; G.711Mu; PCM; G.726; G.723
- Alarm — Alarm Event
- No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception
- Network — Network Port
- RJ-45 (10/100 Base-T)
- Network — SDK and API
- Yes
- Network — Network Protocol
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
- Network — Interoperability
- ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
- Network — User/Host
- 20 (Total bandwidth: 64 M)
- Network — Storage
- FTP; SFTP; Micro SD card (support max. 512 G); NAS
- Network — Browser
- IE: IE11 Chrome Firefox
- Network — Management Software
- SmartPSS Lite; DSS; DMSS
- Network — Mobile Client
- IOS; Android
- Network — Cyber Security
- Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
- Certification — Certifications
- CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- Power — Power Supply
- 12 VDC/PoE (802.3af)
- Power — Dual Power Backup
- When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
- Power — Power Consumption
- Basic: 3.7W (12 VDC); 4.5 W (PoE) Max. (H.265 + WDR + warm light + intelligence on): 8.2 W (12 VDC); 9.8 W (PoE)
- Environment — Operating Temperature
- –30 °C to +60 °C (–22 °F to +140 °F)
- Environment — Operating Humidity
- ≤95% (RH), non-condensing
- Environment — Storage Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Environment — Storage Humidity
- ≤95% (RH), non-condensing
- Environment — Protection
- IP67
- Structure — Casing
- Metal
- Structure — Product Dimensions
- 108.3 mm × Φ122.0 mm (4.26" × Φ4.80")
- Structure — Net Weight
- 690 g (1.52 lb)
- Structure — Gross Weight
- 920g (2.0 lb)
- Dimensions
- 10.83 × 12.2 × 0 cm
- Weight
- 0.69 kg
